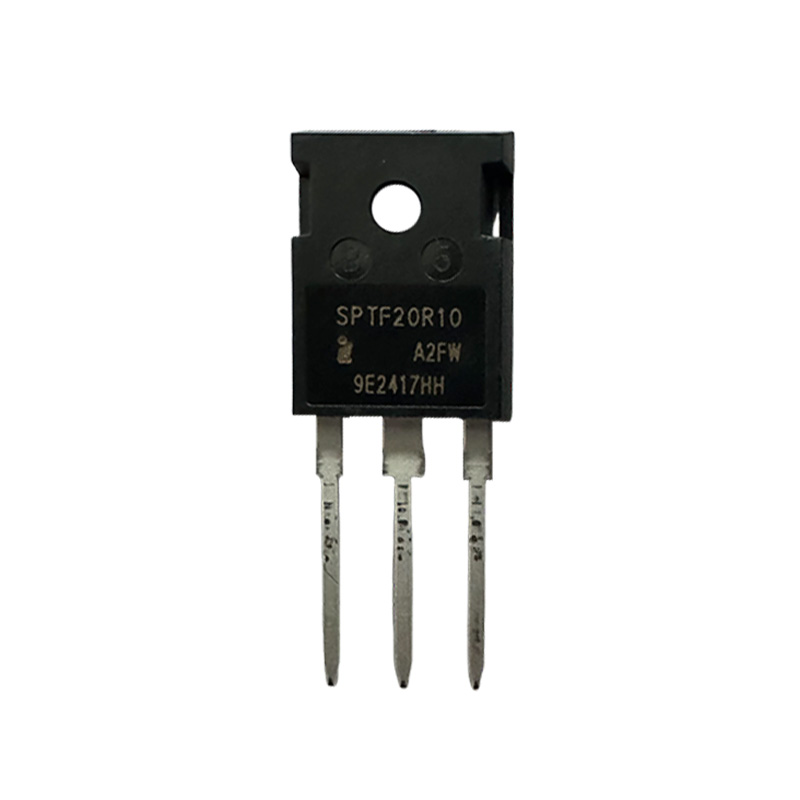

모형: SPTF20R10
공급 유형: ODM, 원래 제조업체, 대리점, 소매상, 다른
참고 자료: 사진, 데이터 시트
VDSS: 200V
ID: 110A
RDS(ON),typ: 9.3mΩ
Ciss: 10656pF
작동 온도: -55 ~ 150 ℃
장치 패키지: TO-247
순수한 최고 등급
|
Symbol |
Parameter |
Limit |
Unit |
|
VDSS |
Drain-to-Source Voltage[1] |
200 |
V |
|
VGSS |
Gate-to-Source Voltage |
±20 |
|
|
ID |
Continuous Drain Current |
110 |
A |
|
Continuous Drain Current @ Tc=100℃ |
75 |
||
|
IDM |
Pulsed Drain Current at VGS=10V[2] |
440 |
|
|
EAS |
Single Pulse Avalanche Energy L=10mH |
2000 |
mJ |
|
dv/dt |
Peak Diode Recovery dv/dt |
5.0 |
V/ns |
|
PD |
Power Dissipation |
278 |
W |
|
Derating Factor above 25℃ |
2.22 |
W/℃ |
|
|
TL TPAK |
Maximum Temperature for Soldering Leads at 0.063in (1.6mm) from Case for 10 seconds, Package Body for 10 seconds |
300 260 |
℃ |
|
TJ& TSTG |
Operating and Storage Temperature Range |
-55 to 150 |
