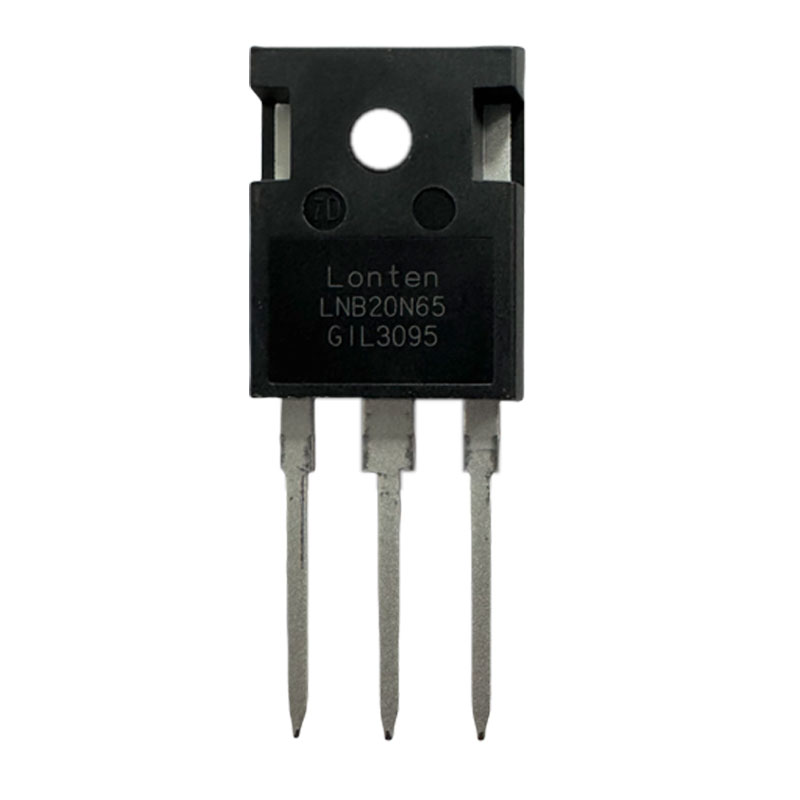

모형: LNB20N65
공급 유형: ODM, 원래 제조업체, 대리점, 소매상, 다른
참고 자료: 사진, 데이터 시트
VDSS: 650V
ID: 20A
RDS (on), Max: 0.5Ω
Ciss: 2962pf
장치 패키지: TO-247
작동 온도: -55 ~ +150 ° C
| Absolute Maximum Ratings | |||
|
Parameter |
Symbol |
Value |
Unit |
|
Drain-Source Voltage |
VDSS |
650 |
V |
|
Continuous drain current ( TC = 25°C ) ( TC = 100°C ) |
ID |
20 12.5 |
A A |
|
Pulsed drain current 1) |
IDM |
80 |
A |
|
Gate-Source voltage |
VGSS |
±30 |
V |
|
Avalanche energy, single pulse 2) |
EAS |
720 |
mJ |
|
Peak diode recovery dv/dt 3) |
dv/dt |
5 |
V/ns |
|
Power Dissipation TO-220F ( TC = 25°C ) Derate above 25°C |
PD |
45
0.36 |
W
W/°C |
|
Power Dissipation TO-247/TO-220 ( TC = 25°C ) Derate above 25°C |
250 2 |
W W/°C |
|
|
Operating junction and storage temperature range |
TJ, TSTG |
-55 to +150 |
°C |
|
Continuous diode forward current |
IS |
20 |
A |
|
Diode pulse current |
IS,pulse |
80 |
A |
